  • Thermal Camera, Super Resolution 240 x 240, Thermal Imaging Camera with Laser Pointer, 96 x 96 IR Resolution, 25 HZ Infrared Camera,-4°F to 1022°F, 50°FOV, 8h Battery Life Thermal Imager

Thermal Camera, Super Resolution 240 x 240, Thermal Imaging Camera with Laser Pointer, 96 x 96 IR Resolution, 25 HZ Infrared Camera,-4°F to 1022°F, 50°FOV, 8h Battery Life Thermal Imager

115.99
        SPECIAL OFFER

          Please select all product options

          Product was out of stock

          share
          Description
          • 【Live Super Resolution Enhancement】The HF96 IR camera features a 96x96 IR resolution, by enabling live super resolution technology during inspections.Its image enhancement algorithm upgrades the thermal image clarity from 96x96 to 240x240 in real-time viewing and photo capturing.Thermal sensitivity below 50mk provides you with high-definition details, and the 25Hz high frame rate ensures a smooth screen browsing experience during anomaly checking.
          • 【Accurate Temperature Measurement】Adopting with an advanced VOx detector, the HF96 thermal cam can detect temperature differentials as small as 0.05℃, and ensure that the temperature readings discrepancy is within ±2%. In addition, the imager enables users to adjust the distance to objects and fine-tune emissivity settings based on specific materials, ensuring more accurate temperature measurements on a variety of substances including cement, bricks, and more.
          • 【Fast Anomaly Recognition】The HF96 thermal image camera features a 50° field of view providing a wide coverage during scanning. Automatic Max, Min, and Center temperature recognition and spots tracking intuitively displays temperature readings in real-time. Additionally, you can set an temperature exceedance alarms to promptly identify anomalies.
          • 【Ease of Use】(1) Built-in laser pointer helps you locate the inspected object in dim environments or small areas. (2) 7 selected color palettes flexibly suit your different inspecting scenarios and purpose.(3) USB Cast Screen allows you to live-share your camera screen to a laptop or computer for detailed inspection (4) Inspecting range is up to -4°F to 1022°F, you can also adjust to highlight specific scope you want to focus on.
          • 【Durable and Sturdy】 (1) Built-in rechargeable battery provides up to 8 hours of continuous operation. (2) Built-in flash memory can store approximately 30,000 standard thermal images. (3) The 6.6ft drop test and IP54 protection rating allow you to work with confidence in most different work scenarios and even harsh environments. (4) Designed with a standard tripod hole, HF96 thermographic camera supports using a tripod to assist inspection works.
          • 【Dependable Support】We offer lifetime firmware updates and round-the-clock technical support. Should you have any inquiries, please reach out to our customer service team through Store / Website.

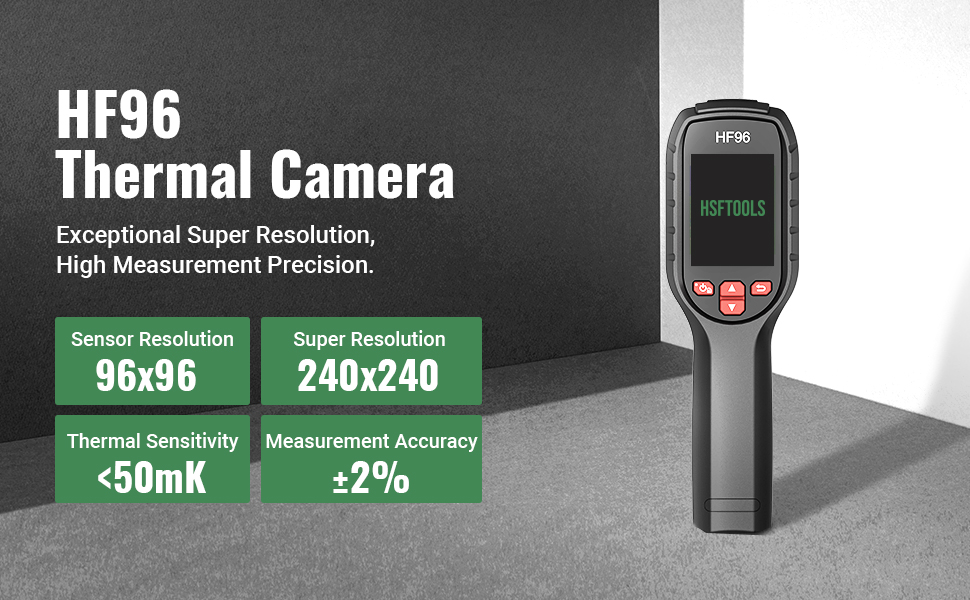

          HF96 Thermal camera HF96 Thermal camera

          1. High Image Quality. Enable Super resolution, the image quality will be upscaled from 96*96 to 240*240. 25HZ frame rate ensures a smooth live viewing experience without freezes or lags.

          2. Accurate temperature reading. The HF96 can detect temperature changes of 0.05℃ with a small difference of only ±2% , and provides emissivity reference for common objects.

          3. Intuitive temperature readings. The HF96 automatically detects and displays maximum, minimum, and center temperature spots,helping you quickly identify anomalies in the scanning area.

          4. 7 selected color palettes allow you to flexibly choose the most suitable color palette for different detection scenarios and purposes.

          5. Laser pointer helps you locate the inspected object in dim environments or small areas. Temperature exceedance alarm helps locate the anomaly spot efficiently.

          6.Wide temperature range of -68°F to +1022°F allows for adjusting the range to focus on specific inspection areas.

          7. Built-in 3350mAh rechargeable battery provides an 8-hour runtime, sufficient for a full day of work.

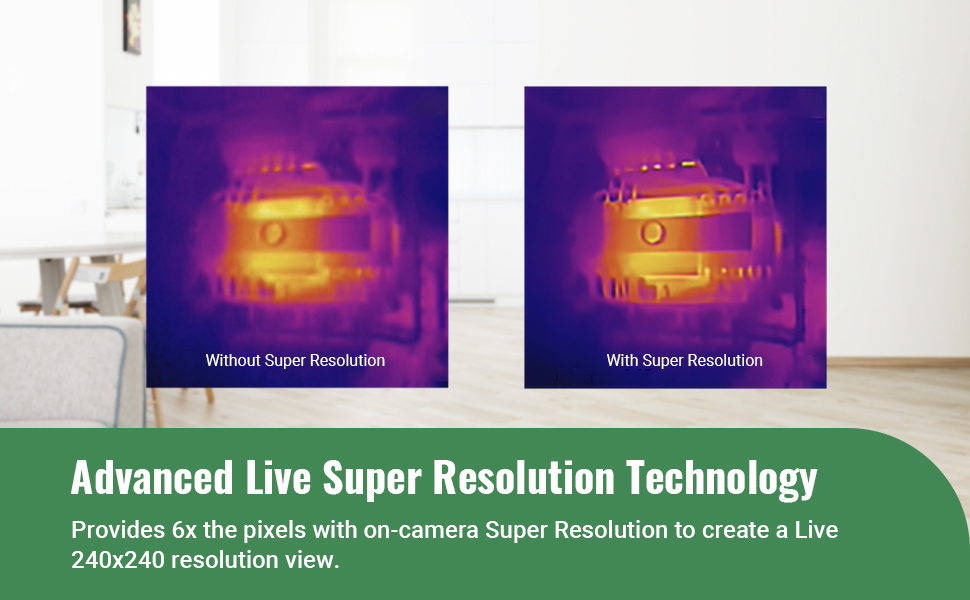

          SUPER RESOLUTION SUPER RESOLUTION

          For better image clarity:

          • Inspecting distance: Recommended within 6.56 feet
          • Inspecting Time: Early morning or night that with significant temperature difference.
          • Color Palettes: Choose appropriate palette based on the scene being observedlike gray for focusing on details, rainbow for high contrast, and iron for general use.

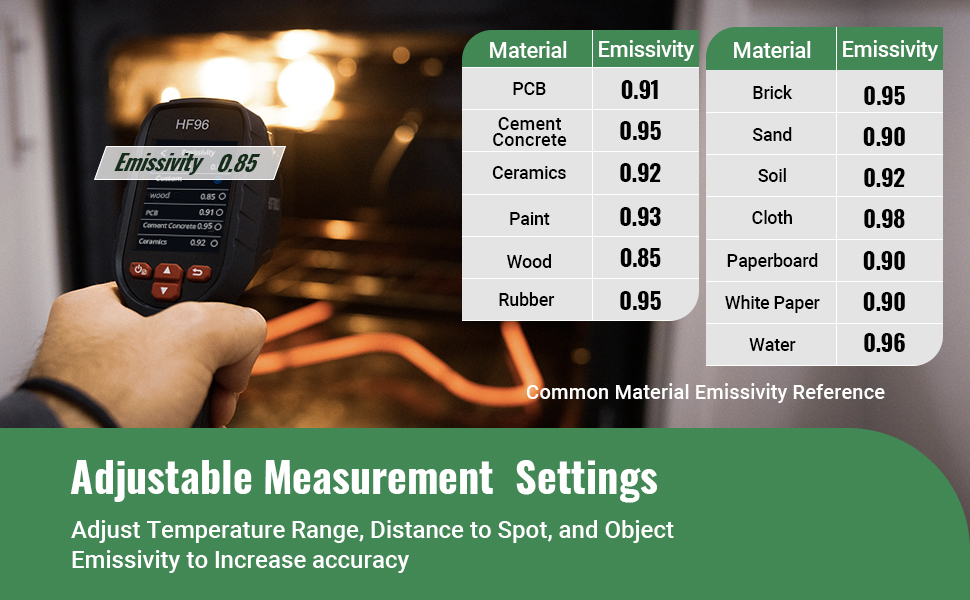

          emissivity emissivity

          • The HF96 is equipped with emissivity parameters for common objects. (e.g. metal, ceramic, cement, etc.)
          • Select the the emissivity according to the material to be measured before the inspection, and adjust an approximate temperature range to ensure more accurate temperature measurements.
          • For better readings accuracy, it is recommended to keep regular-sized targets within 6.56 feet (2 meters) of the thermal camera. If the target is larger, you can increase the distance to achieve a wider angle of view.

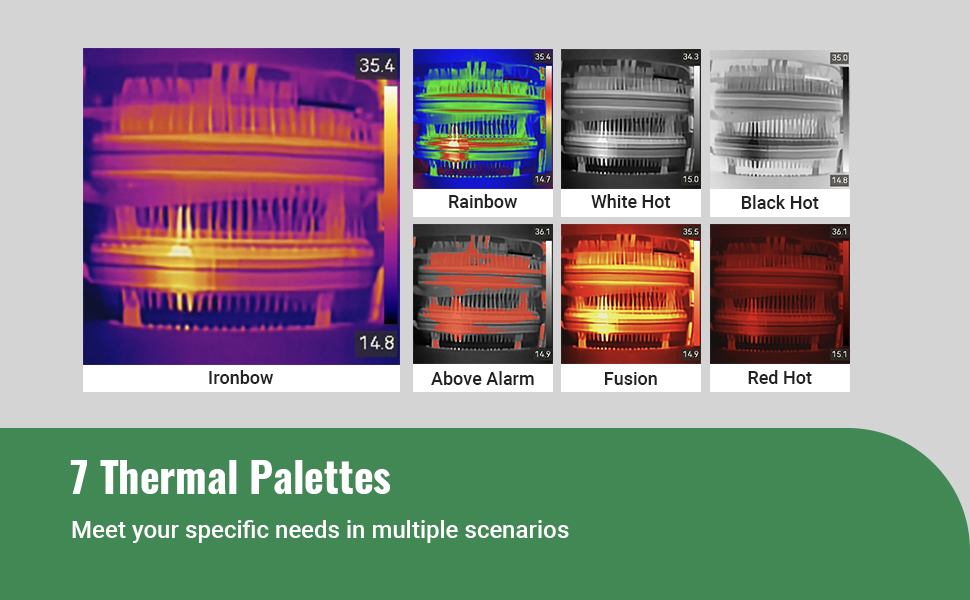

          7 COLOR PALLETS 7 COLOR PALLETS

          7 selected color palettes allow you to flexibly choose the most suitable image settings for different detection scenarios and purposes.

          application application

          FAQ

          Q1: Can a thermal imager see through walls?

          Thermal imagers create images by capturing the thermal radiation on the surface of objects, and it is unable to see through walls unless there is a sufficient temperature difference behind them.

          Q2: Can a thermal imager detect mold?

          The process of mold growth often accompanies the release or absorption of heat, which may lead to changes in the temperature of its surrounding environment. However, since mold itself may not directly emit sufficient thermal radiation to be captured by a thermal imager, we recommend using it as part of a comprehensive mold inspection process that includes visual inspection, humidity testing, and possible air sampling to more accurately identify potential risk points.

          Q3: How does a thermal imager detect water leaks?

          Step 1. Selection of Testing Time: It is recommended to test the building after it has been subjected to thermal loads (e.g., after sunlight exposure on a hot, dry, sunny day) because the temperat
